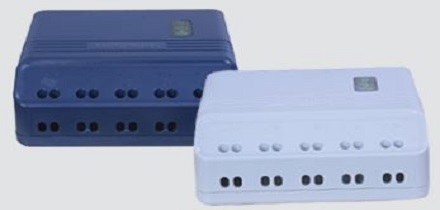

Charge Controller

Luminous charge controllers are PWM based controllers with 98% efficiency. It has option of USB charging & dusk to dawn feature. It comes in ratings of 6/10/20 Amp.

Features

Automatic selection of voltage as per battery connection

3 load Output Terminals with easy load connection(PWM)

USB charging facility is available

Equipped with in built short ciccuit protection

30%more efficient than normal charge controllers



Technical Specfication

Automatic battery voltage selection of 12/24Volt(10 & 20 Amp)

In built Low Voltage Disconnect (LVD) & 20% extra power than rated capacity

200Watt panels in 12 system in 6Amps ; 200Watt & 400Watt panels in 12/24Volt system in 10Amps

400Watt & 800Watt panels in 12/24Volt system in 20Amps.
